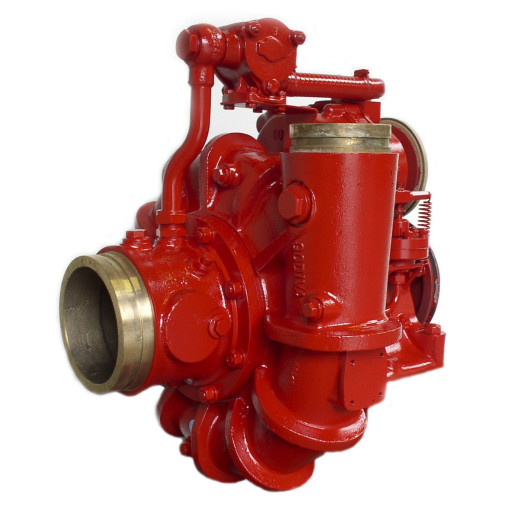

- GV Range - GV5410
Overview
Specifications
Accessories
Features
- Rated output at 3m lift of 4000 L/min at 15 Bar
- Maximum flow of 5800 L/min and maximum pressure discharge of 22 BAR
- Automatic water ring primer for minimal maintenance
- Spring-loaded mechanical seal is self-adjusting and self-lubricating
- Stainless steel shaft directly coupled to the pump drive flange
- Available in engine rotation Available in Aluminum or bronze
Specifications
| Brand | GV |
|---|---|
| Length | 22,6 (575) |
| Width | 21 (533) |
| Height | 25,4 (644) |
| Flow (GPM) | 1277.5 gpm |
| Flow (LPM) | 5800 l/min |
| Rated Output LPM | 4000 l/min @ 15 bar |
| Rated Output GPM | 881 gpm @ 217.5 psi |
| Maximum outlet pressure bar | 22 bar |
| Maximum outlet pressure psi | 319 psi |
| Recommended priming speed | 2600 rpm |
| Maximum recommended priming speed | 3600 rpm |
| Impeller material | Hard anodized aluminium alloy |
| Volute material | High strength corrosion resistant aluminium alloy (Gunmetal Optional) |
| Seal type | Mechanical seal |
| Drive | PTO |
| Pump type | Single Pressure |
