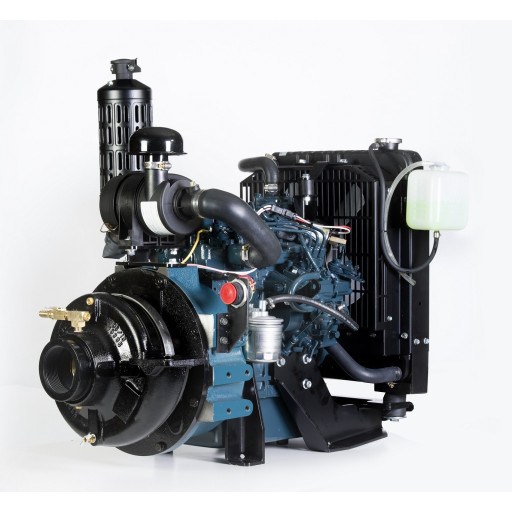

- PowerFlow HPX300-KBD24
Overview
Specifications
Installation / Service
Performance
Software/Multimedia
Features
- Flows ranging from 190 GPM @ 100 PSI to 400 GPM @ 50 PSI
- Kubota Super Mini Series D902 24.8-HP 4-cycle diesel engine
- EPA Tier 4 emissions compliant
- Electric start
- Anodized aluminum alloy pump head and body
- Pump head and body coupled together with stainless steel band clamp for easy serviceability
- Bronze impeller and renewable wear rings
- Self-adjusting mechanical seal
- 12V ESP primer
- 3.0” Female NPT / 4.0” Victaulic suction connection; 3.0” Female NPT discharge
Applications/Solutions
- Fire OEMs
- Firefighting - Wildland Forestry
PowerFlow HPX300-KBD24 Video
Specifications
Certification(ss) |
|
---|---|
Warranty | |
Weight | 155 kg |
Length | 33.25 inches (845 mm) |
Width | 20.5 inches (521 mm) |
Height | 35.5 inches (902 mm) |
Fuel Type | Diesel |
Application Solutions Portables | Slip-on |
Performance Application Type | Low Pressure, High Flow |
Dimensions | Medium |
Priming Option | Manual, Electric |
Documents
Name | Sheet # | |
---|---|---|
HPX300-KBD24 Bid Specification |
Installation and Service Documents
Contact Us with Questions
Performance Content
Contact Us with Questions
Name | Type |
---|---|
HP300-KBD24 Performance Curve | |
HP Pump Diesel Performance Range | |
HP Pump Performance Application Guide | |
HP Pump NFPA 1906 Selection Guide |
Software Updates and Downloads
Contact Us with Questions
Type | Description | Instructions | Version | Updated | File |
---|---|---|---|---|---|
2017-10-30 06:53:52 | |||||
2017-10-30 06:55:11 | |||||
2017-10-30 11:31:55 | |||||
2017-10-30 11:33:36 | |||||
2017-10-30 11:35:55 |
Product Updates and Media Files
Description | Type | Size | |
---|---|---|---|
Kubota Diesel Dual Panel Control | 719.62 KB | ||
Portable Pro Kit (PPK) | 121.67 KB | ||
High Flow Portables Brochure | 4.54 MB |
