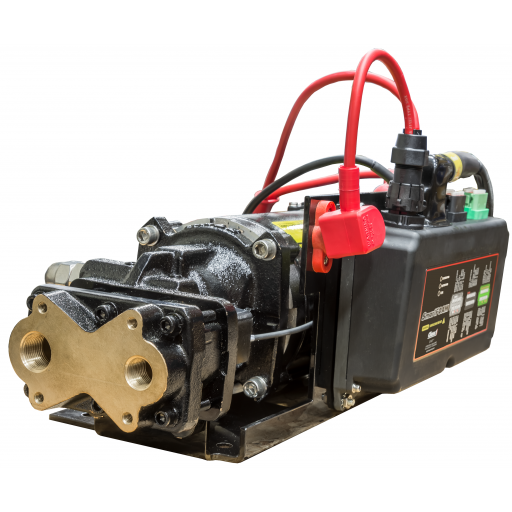

- FoamLogix with UV SmartFOAM
Features
- 25 l/min (6.5 gpm) Rotary Gear Pump
- Computer controlled Class A and Class B foam proportioning at a value price
- Push button proportioning
- Arrow buttons allow changing foam percentage from 0.1% to 10.0%
- Digital control means the operator presses one button for precise foam delivery every time
- Available fully integrated onto a new Godiva pump or in kits to fit other pump brands
- Optional manual or air operated dual tank valves available
- Wide range of flow sensor options from pipe saddle clamps to stainless steel weld-on fittings are available
Specifications
| Certification(ss) |
|
|---|---|
| Warranty | |
| Brand | SmartFoam |
| Length | 22.1 inches (561 mm) |
| Width | 6.7 inches (170 mm) |
| Height | 7.1 inches (180 mm) |
| Amperage | 90 amps @ 12V, 45 amps @ 24V |
| Rated Output LPM | 24.6 LPM |
| Rated Output GPM | 6.5 GPM |
| Maximum flow at 10 bar | 24.6 LPM |
| Maximum outlet pressure bar | 13.7 bar |
| Maximum outlet pressure psi | 200 psi |
| Seal type | Mechanical |
| Maximum operating pressure options | 13.8 bar (FoamLogix 6.5) |
| Performance Application Type | Medium Pressure, High Flow |
| Pump type | Multi-pressure, Single Pressure, Two-stage |
| Apparatus type | Single Stage, Two Stage, PTO, Rear Mount, Side Mount, Top Mount |
| Foam Performance | High Flow |
Documents
| Name | Sheet # | |
|---|---|---|
 |
 SmartFOAM Bid Specification |
A |
Installation and Service Documents
Contact Us with Questions
| Name | Sheet # | |
|---|---|---|
|
 SmartFOAM Calibration Guide |
|
|
SmartFOAM Setup Guide |
FSG-MNL-00177 |
|
Recommended Spares - SmartFOAM |
|
|
Quick Reference Guide - Foam - Single Tank Hose Installation |
|
|
SmartFOAM Quickstart Video Guide |
FSG-INS-00057 |
|
Product Bulletin - SmartFOAM Motor Driver Update |
PB-1007 |
|
Product Bulletin - Display Replacement for Analog System |
PB-1010 |
|
SmartFOAM Manual |
FSG-MNL-00158 |
|
SmartFOAM Operation Quickstart |
FSG-MNL-00179 |
Software Updates and Downloads
Contact Us with Questions
| Type | Description | Instructions | Version | Updated | File |
|---|---|---|---|---|---|
 |
Download Latest update to USB. Plug in USB Adapter to back of display with USB. Enter passcode: 2668 in the menu screen. Use Up and down arrows to find Update-SmartFOAM_1.XX.tar XX:LATEST REVISION (CHECK BACK HERE FOR UPDATES) Hit the right arrow twice to confirm and update. 1.21 functionality update: Moved water calibration to annual Set the maintenance interval to the foam unit run time. So if the unit isn't running the maintenance interval also doesn't run. 1.20 functionality updates: Added OEM menu item (2314 menu) to select style of 2nd pump (1.7, 2.1, 3.3, 5.0, etc). Updated limp home mode for secondary pump to use correct model. Allow piston pump models(1.7 and 2.1) to use prime button. These two pumps used to hide the prime button. Added auto enable in the OEM menu (2314 menu). When enabled, the system will turn ON when water flow is detected. This is defaulted to DISABLE. Update the “water flow buffering” value in the FACTORY menu – password 57643. Useful for turbulent flows condition for the water flowmeter. |
1.21 | 2019-04-29 15:20:57 | |
|
 |
2018-12-17 11:22:03 | |
