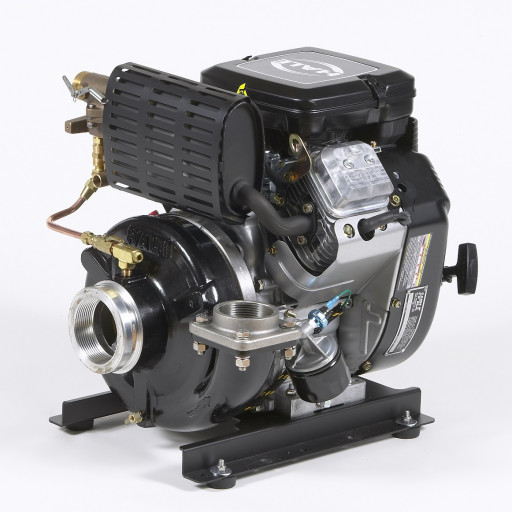

PowerFlow HPX200-B23

Features

• Flows ranging from 90 GPM @ 150 PSI to 250 GPM @ 30 PSI
• Ultra-reliable Briggs & Stratton 23-HP 4-cycle V-Twin gasoline engine
• Electric start with recoil backup
• Anodized aluminum alloy pump head and body
• Pump head and body coupled together with stainless steel band clamp for easy serviceability
• Bronze impeller and renewable wear rings
• Self-adjusting mechanical seal
• Exhaust gas venturi priming
• 3.0” NPT / 4.0” Victaulic suction connection; 2.5” NPT discharge

Applications/Solutions

• Fire OEMs
• Firefighting - Wildland Forestry

PowerFlow HPX200-B23 Video

Specifications

Certification(ss)
Warranty
Weight	66 kg
Length	22 inches (559 mm)
Width	18 inches (457 mm)
Height	20.25 inches (514 mm)
Fuel Type	Petrol/Gasoline
Application Solutions Portables	Slip-on
Performance Application Type	Medium Pressure, Medium Flow
Dimensions	Extra Small
Priming Option	Manual, Exhaust, Electric

Performance Content

Contact Us with Questions

Name	Type
HP200-B23 Performance Curve
HP Pump Performance Application Guide
HP Pump Gasoline Performance Range
HP Pump NFPA 1906 Selection Guide
