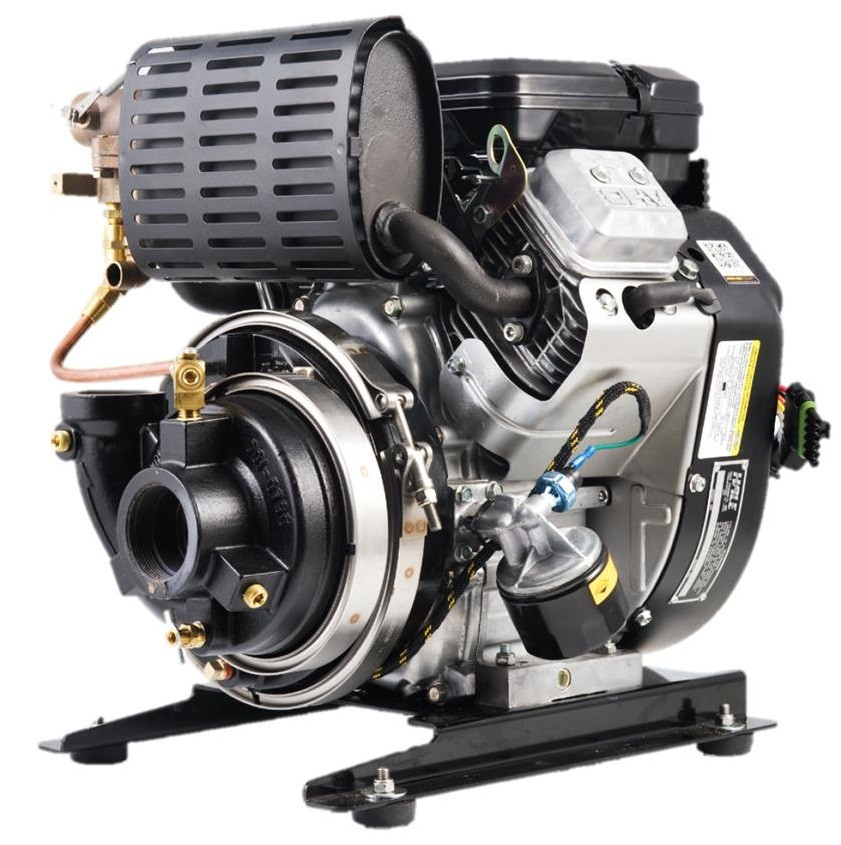

PowerFlow HPX75-B18

Features

• Flows ranging from 15 GPM @ 325 PSI to 135 GPM @ 50 PSI
• Ultra-reliable Briggs & Stratton 18-HP 4-cycle V-Twin gasoline engine
• Electric start with recoil backup
• Anodized aluminum alloy pump head and body
• Pump head and body coupled together with stainless steel band clamp for easy serviceability
• Bronze impeller and renewable wear ring
• Self-adjusting mechanical seal
• Exhaust gas venturi priming
• 2.0” NPT suction connection; 1.5” NPT discharge

Applications/Solutions

• Fire OEMs
• Firefighting - Wildland Forestry

PowerFlow HPX75-B18 Video

Specifications

Certification(ss)
Warranty
Weight	71 kg
Length	21 inches (533 mm)
Width	18 inches (457 mm)
Height	20 inches (508 mm)
Fuel Type	Petrol/Gasoline
Application Solutions Portables	Slip-on
Performance Application Type	High Pressure, Low Flow
Dimensions	Extra Small
Priming Option	Manual, Exhaust, Electric

Performance Content

Contact Us with Questions

Name	Type
HP75-B18 Performance Curve
HP Pump Performance Application Guide
HP Pump Gasoline Performance Range
HP Pump NFPA 1906 Selection Guide
