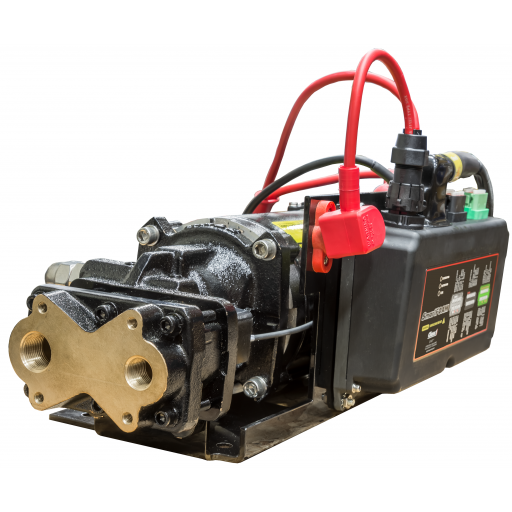

- FoamLogix 3.3
Overview
Specifications
Installation / Service
Software/Multimedia
Features
- 12 l/min (3.3 gpm) Rotary Gear Pump
- Computer controlled Class A and Class B foam proportioning at a value price
- Push button proportioning Arrow buttons allow changing foam percentage from 0.1% to 10.0%
- Digital control means the operator presses one button for precise foam delivery every time
- Available fully integrated onto a new
- Hale pump or in kits to fit other pump brands
- Optional manual or air operated dual tank valves available
- Wide range of flow sensor options from pipe saddle clamps to stainless steel weld-on fittings are available
Specifications
Certification(ss) |
|
---|---|
Warranty | |
Brand | FoamLogix |
Length | 21.75 inches (552 mm) |
Width | 6.7 inches (170 mm) |
Height | 7.1 inches (180 mm) |
Amperage | 60 amps @ 12V, 30 amps @ 24V |
Rated Output LPM | 12.5 LPM |
Rated Output GPM | 2.75 GPM |
Installation and Service Documents
Contact Us with Questions
Name | Sheet # | |
---|---|---|
Recommended Spares - Foamlogix | ||
Recommended Spares - SmartFOAM | ||
Quick Reference Guide - Foam - Single Tank Hose Installation | ||
Product Bulletin - SmartFOAM Motor Driver Update | PB-1007 | |
Product Bulletin - Display Replacement for Analog System | PB-1010 | |
FoamMaster Manual - (LEGACY/OBSOLETE) | 029-0020-35-0-E | |
FoamMaster V Series Manual - (LEGACY/OBSOLETE) | 029-0020-55-0-C | |
FoamLogix 3.3, 5.0, and 6.5 Manual | ||
FoamLogix Quickstart Calibration Guide | ||
SmartFOAM Operation Quickstart | FSG-MNL-00179 | |
Foam Compatibility Chart | Foam Compatibility Chart |
