Overview
Specifications
Installation / Service
Features

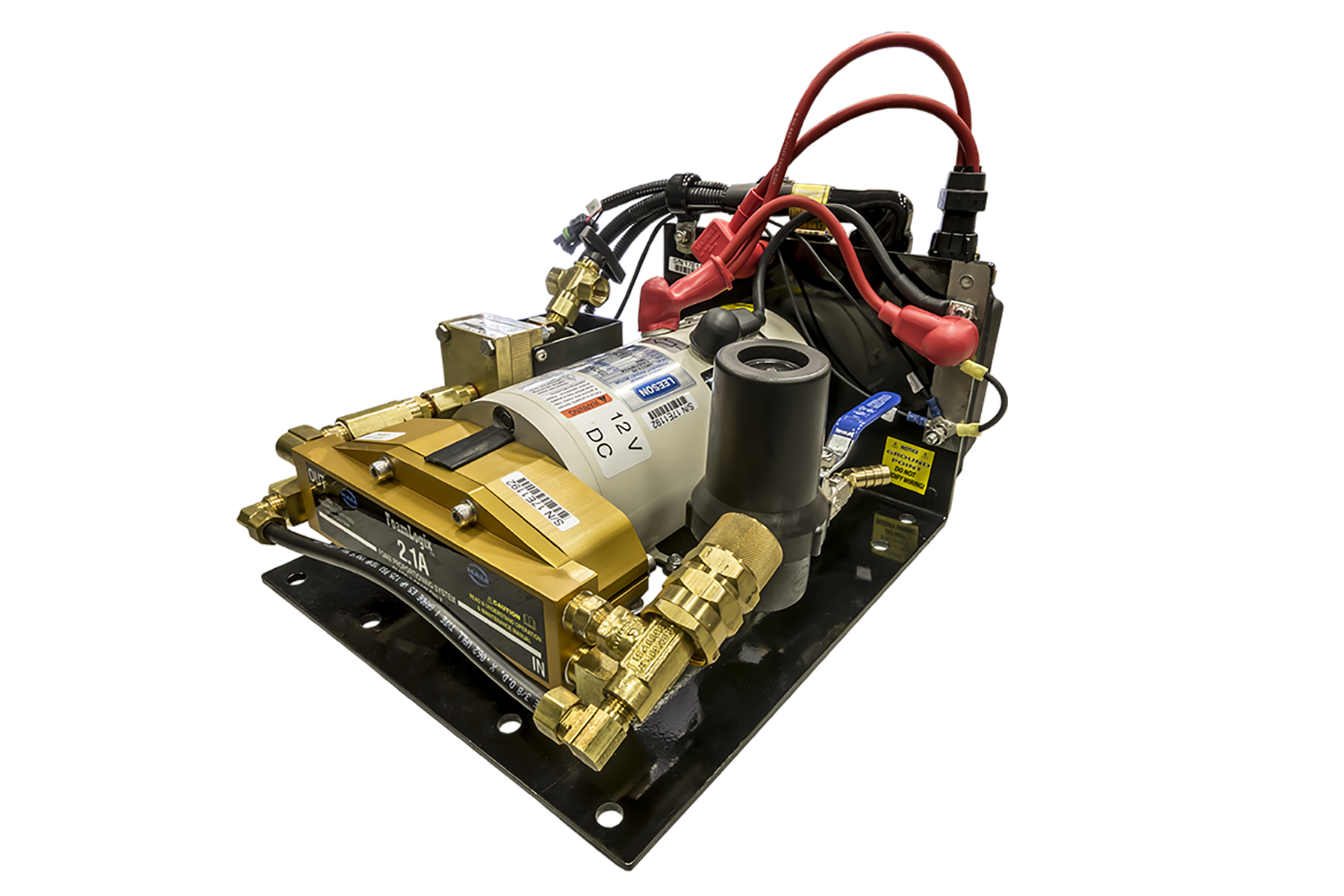

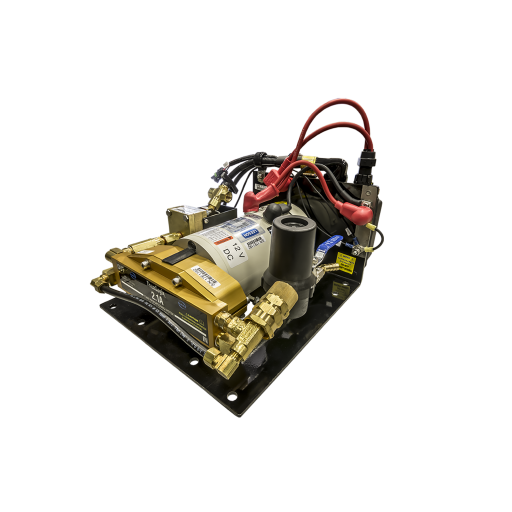

- 8 l/min (2.1 gpm) Piston Pump Computer controlled Class A foam proportioning at a value price
- Push button proportioning
- Arrow buttons allow changing foam percentage from 0.1% to 10.0%
- Digital control means the operator presses one button for precise foam delivery every time
- Available fully integrated onto a new Hale pump or in kits to fit other pump brands
- Wide range of flow sensor options from pipe saddle clamps to stainless steel weld-on fittings are available
Specifications
Certification(ss) |
|
---|---|
Warranty | |
Brand | SmartFoam |
Length | 16.4 inches (416 mm) |
Width | 13.1 inches (333 mm) |
Height | 6.9 inches (175 mm) |
Amperage | 40 amps @ 12V, 20 amps @ 24V |
Rated Output LPM | 7.9 LPM |
Rated Output GPM | 1.74 GPM |
Installation and Service Documents
Contact Us with Questions
Name | Sheet # | |
---|---|---|
PRODUCT BULLETIN - 0.7A/1.7A/2.1A Foam Compatability | 650 | |
Recommended Spares - Foamlogix | ||
Recommended Spares - SmartFOAM | ||
Quick Reference Guide - Foam - Single Tank Hose Installation | ||
Product Bulletin - SmartFOAM Motor Driver Update | PB-1007 | |
Product Bulletin - Display Replacement for Analog System | PB-1010 | |
FoamMaster Manual - (LEGACY/OBSOLETE) | 029-0020-35-0-E | |
FoamMaster V Series Manual - (LEGACY/OBSOLETE) | 029-0020-55-0-C | |
029-0020-74-0-F 2.1A/1.7A FOAMLOGIX MANUAL | 029-0020-74-0 | |
SmartFOAM Operation Quickstart | FSG-MNL-00179 | |
Foam Compatibility Chart | Foam Compatibility Chart |
