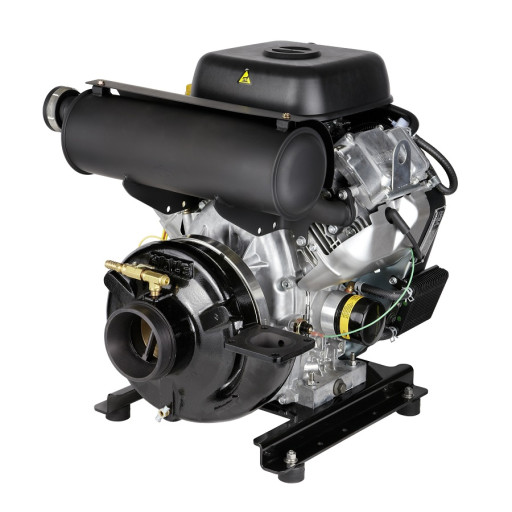

- PowerFlow HPX450-B35
Overview


Specifications
Installation / Service
Performance
Software/Multimedia
Features
- Flows ranging from 250 GPM @ 100 PSI to 550 GPM @ 45 PSI
- Ultra-reliable Briggs & Stratton 35-HP 4-cycle V-Twin big bore gasoline engine
- Electric start • Anodized aluminum alloy pump head and body
- Pump head and body coupled together with stainless steel band clamp for easy serviceability
- Bronze impeller and renewable wear rings
- Self-adjusting mechanical seal
- USFS Guzzler hand primer
- 4.0” Victaulic suction connection; 3.0” NPT discharge
Applications/Solutions
- Fire OEMs
- Firefighting - Wildland Forestry


PowerFlow HPX450-B35 Video
Specifications
| Certification(ss) |
|
|---|---|
| Warranty |
|
| Weight | 86 kg |
| Length | 24 inches (607 mm) |
| Width | 23.5 inches (597 mm) |
| Height | 24.38 inches (619 mm) |
| Fuel Type | Petrol/Gasoline |
| Application Solutions Portables | Slip-on |
| Performance Application Type | Low Pressure, High Flow |
| Dimensions | Small |
| Priming Option | Manual, Electric |
Documents
| Name | Sheet # | |
|---|---|---|
| |
Installation and Service Documents
Contact Us with Questions
| Name | Sheet # | |
|---|---|---|
Performance Content
Contact Us with Questions
| Name | Type |
|---|---|
| HP450-B35 Performance Curve | |
| HP Pump Performance Application Guide | |
| HP Pump Gasoline Performance Range | |
| HP Pump NFPA 1906 Selection Guide |
